织物补偿器位移偿置 |
| 温度等级 |

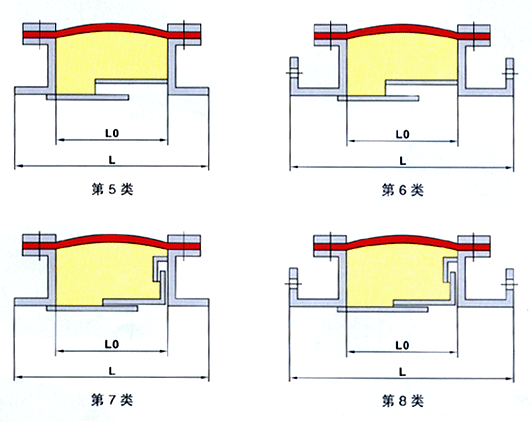

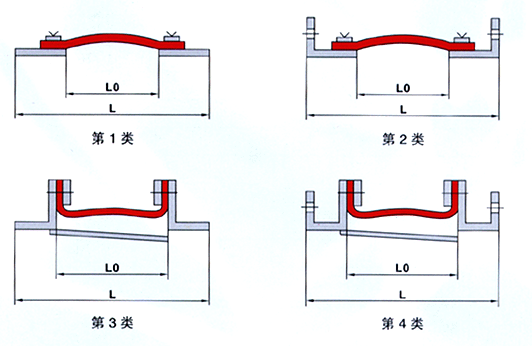

织物补偿器有效长度LO的百分比 |
|
轴向位移 |
径向位移 |
|
50 |
40 |
30 |
25 |
25 |
20 |
15 |
| A |
● |
|
|
|
● |
|
|
| B |
● |
|
|
|
● |
● |
|
| C |
|
● |
|
|
|
● |
|
| D |
|
● |
|
|
|
|
|
| E |
|
|
● |
|
|
|
● |
| F |
|
|
|
● |
|
|
● |
| G |
|
|
|
● |
|
|
● |
|
|
· 织物补偿器的位移补偿能力和温度等级相关，温度等级越高织物补偿器越厚，其补偿能力就越低。 |
|
· 举例： |
如织物补偿器温度等级为E级，其轴向位移为45mm，径向位移为30mm，
则织物补偿器的有效长度L0的计算为：
45×100÷30＝150mm
30×100÷15＝200mm
结果L0取200mm. |
|
|
